CNC Turning
Aerospace CNC Turned Parts

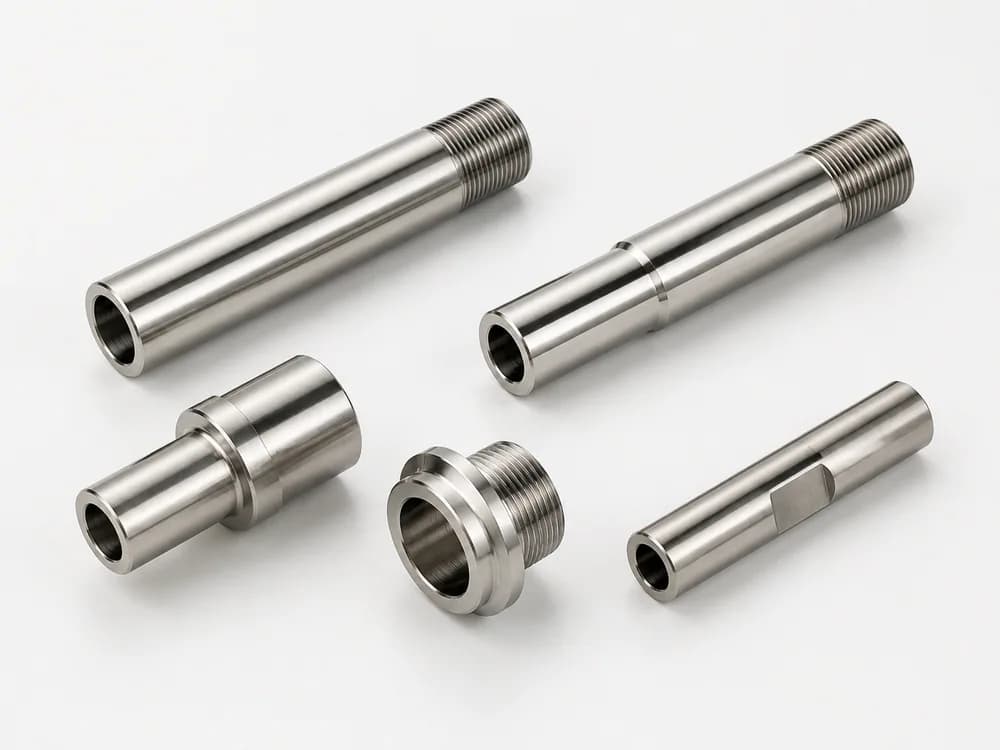

Drawing-led CNC turning for shafts, threaded sleeves, plugs, fittings and other rotational aerospace components.

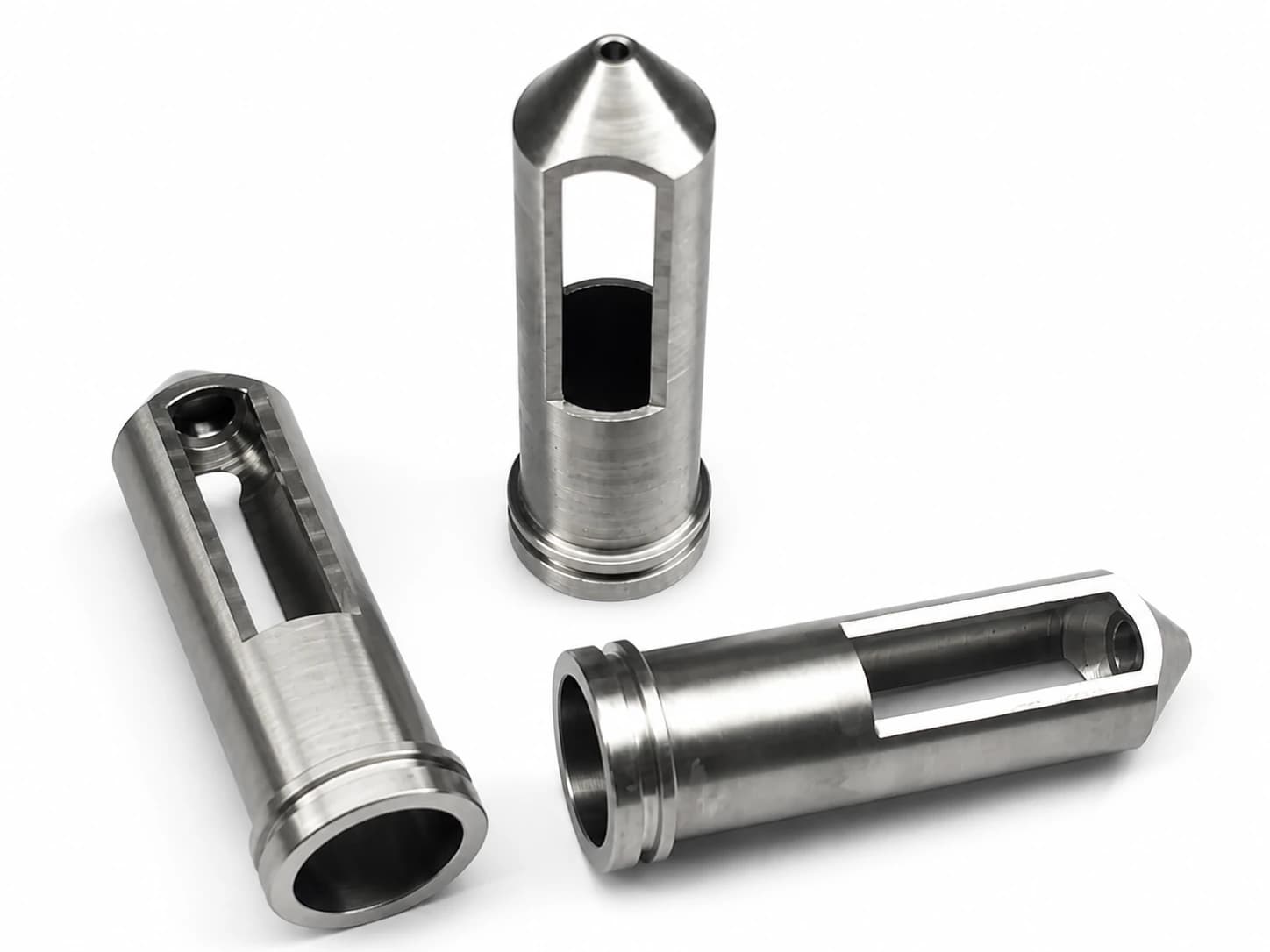

- Rotational parts with cross-holes and milled windows

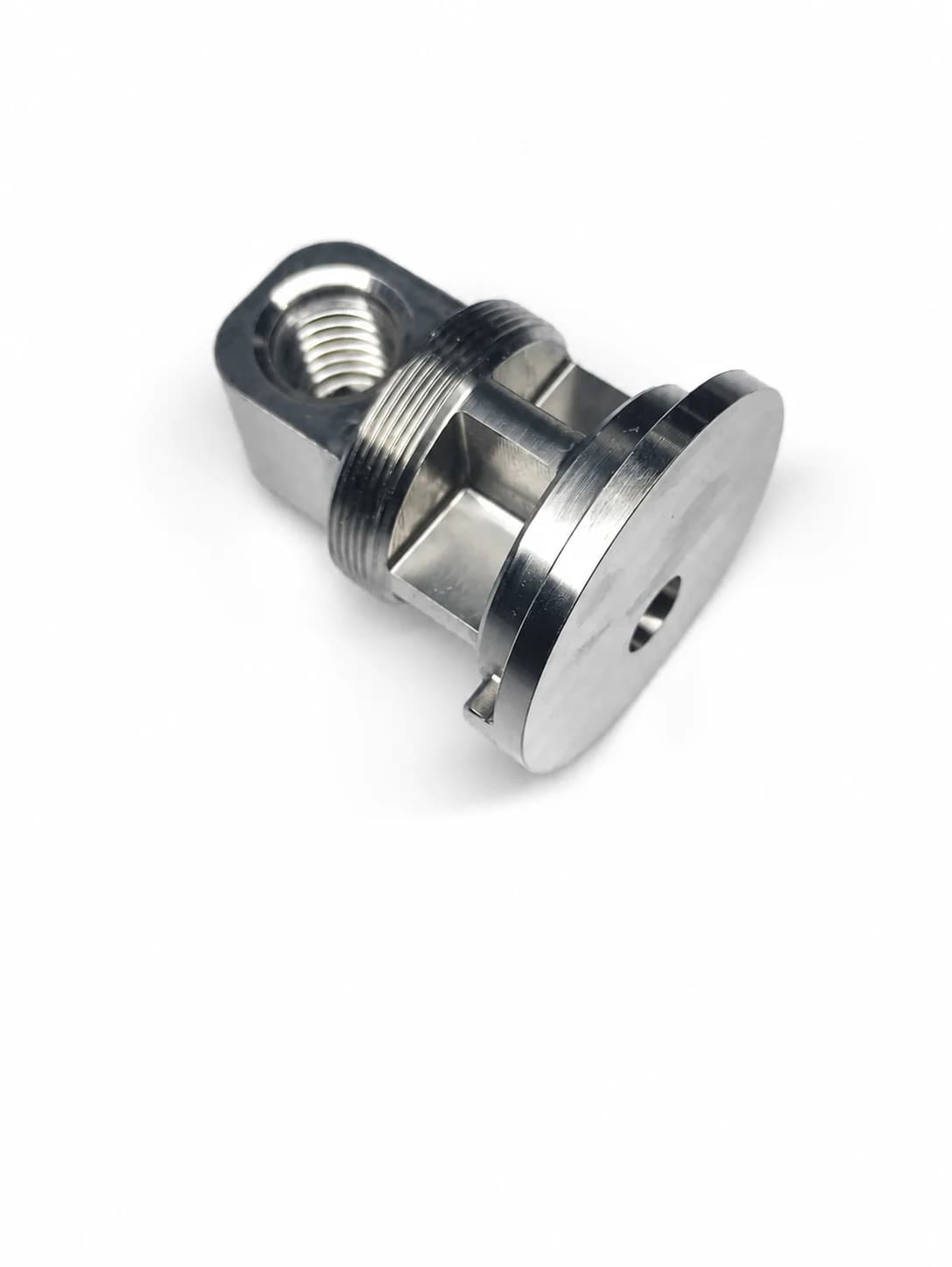

- External and internal threaded features
- Prototype, sample and repeat production support
- Inspection planning based on drawing requirements
Capability overview
Built around your drawing and functional requirements.
For rotational parts that combine concentric features, threads, bores and milled details, MIM Precision supports drawing review, process planning, machining and inspection from prototype through repeat production.
Project workflow
From requirements to controlled production.
Turning strategy
Operations are planned around concentricity, feature access and stable workholding.
Secondary machining
Milled flats, cross-holes, slots and windows can be coordinated with the turning process.
Inspection & records
Inspection scope is aligned with the drawing and the documentation requested for the project.
Product examples
Components and manufacturing context.

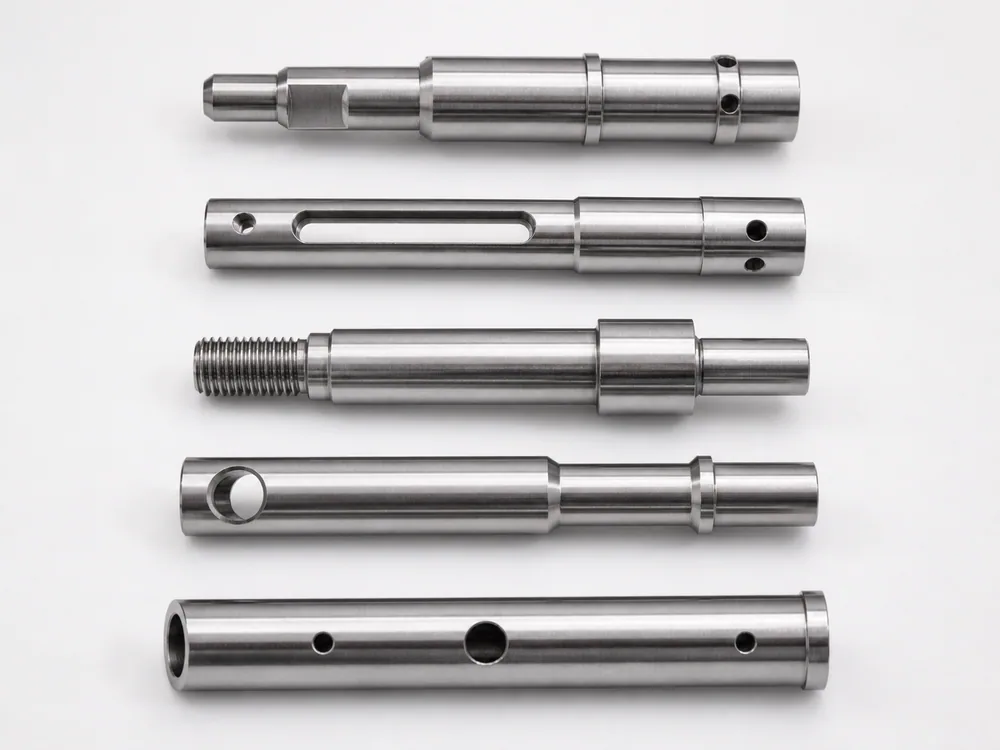

Images illustrate the component families and application context relevant to this capability.
Materials
Material scope
- Aluminum alloys
- Stainless steels
- Carbon and alloy steels
- Copper alloys
- Engineering plastics
- Customer-specified materials
Applications
Typical project uses
- Actuation and control assemblies
- Sensor and instrumentation housings
- Fluid and pneumatic connections
- Aerospace test equipment
- Precision mechanical assemblies
- Custom drawing-based components
Frequently asked questions
Planning your next RFQ.
Project-specific capability depends on the drawing, material, quantity and inspection requirements.
Read the RFQ checklistWhat files should I send for a turned-part quote?+
A 3D CAD model plus a controlled 2D drawing is preferred. Include material, quantity, surface finish, thread callouts and any inspection or documentation requirements.
Can turned parts include milled windows or cross-holes?+
Yes. Rotational components can be planned with secondary milling, drilling, slotting or other machining operations when the drawing requires them.
Can you support prototypes before repeat production?+
Projects can begin with prototype or sample quantities and move into repeat production after the design, process and inspection plan are confirmed.
How are critical dimensions inspected?+
The inspection method depends on the feature, tolerance and drawing requirements. The project review can define gauges, dimensional inspection and any requested reporting.
Discuss your aerospace turned parts project.
Send the key project details and our manufacturing team will respond with a focused next step.
