A quote-ready CNC machining RFQ gives engineering and procurement teams comparable proposals with fewer assumptions, clarification cycles and late requirement changes.
Key takeaways
Send a current 3D model and controlled 2D drawing; state which document governs if they conflict.
Define material, quantity, critical tolerances, finishing and inspection scope before suppliers quote.
Separate confirmed requirements from pending items so assumptions are visible and quotations are comparable.
01
Start with a controlled 3D model and 2D drawing
Send the current 3D CAD model together with a controlled 2D drawing. The model communicates nominal geometry efficiently; the drawing should control tolerances, datums, threads, surface finish, notes and any requirements that are not fully represented in the model.
Include the part number and revision on every relevant file. If the model and drawing conflict, state which one governs. For an assembly, add a marked-up view or mating-part context when it explains alignment, sealing, motion or no-contact areas.
- STEP or STP for a neutral solid model; native CAD when useful
- PDF drawing with dimensions, GD&T, threads and notes
- Part number, drawing number and current revision
- Assembly context for critical interfaces
- Confidentiality requirements before file exchange
02
Define material grade, condition and allowed substitutions
Specify the exact alloy, polymer grade, temper or heat-treatment condition when it affects strength, corrosion, wear, temperature performance or downstream processing. A broad description such as “aluminum” or “stainless steel” leaves too much room for suppliers to quote different assumptions.
If an equivalent material is acceptable, say so and define the properties or standards that must be preserved. Request certificates or declarations during quotation when they are required for acceptance; adding them after production can change sourcing, traceability and documentation work.
- Material standard, grade and condition
- Heat treatment or hardness range
- Approved equivalents and governing properties
- Material certificates or customer-specific declarations
- Any restricted-substance requirements
03
Identify critical features, tolerances and datum relationships
Separate functional requirements from general dimensions. Mark the bores, sealing faces, bearing fits, hole patterns and profiles that control assembly or performance. A clear datum structure helps the supplier plan workholding, machining sequence and inspection around the right relationships.
Avoid applying the tightest tolerance or finish to every surface unless function requires it. When a feature needs a specific inspection method or report, include that scope in the RFQ so suppliers quote comparable manufacturing and quality plans.
- Primary, secondary and tertiary datums
- Critical dimensions and GD&T controls
- Threads, precision bores and sealing surfaces
- Surface roughness on functional areas
- Measurement method or report scope for key characteristics
04
Specify surface finish, cosmetic limits and post-processing
State the exact finish and any applicable specification, color, gloss or texture reference. Show masking, no-coat zones, protected threads and electrical contact areas on the drawing. Coating, plating, heat treatment and passivation can affect dimensions, appearance and lead time, so they should be evaluated with the machining route.
For visible components, describe acceptable cosmetic criteria with objective zones or reference samples rather than relying only on words such as “perfect.” Mark surfaces that cannot show clamp marks, rack marks or handling contact.
- Finish type, standard and target color where applicable
- Masking and no-finish areas
- Dimensions that apply before or after finishing
- Cosmetic zones and allowable handling marks
- Part marking or serialization requirements
05
Provide quantity breaks, demand pattern and delivery context
Request prices for the quantities you may actually buy, such as prototype, pilot and production breaks. Also share expected annual demand and release pattern when known. This allows suppliers to consider flexible prototype workholding separately from fixtures or process controls that may be justified for repeat orders.
State the requested delivery date, shipping destination and whether partial releases are useful. A target date without quantity, approval steps or destination is difficult to evaluate consistently.
- Prototype and first-order quantity
- Production quantity breaks
- Expected annual demand or release schedule
- Sample approval milestone
- Delivery destination and target date
06
Define inspection, documents, cleaning and packaging

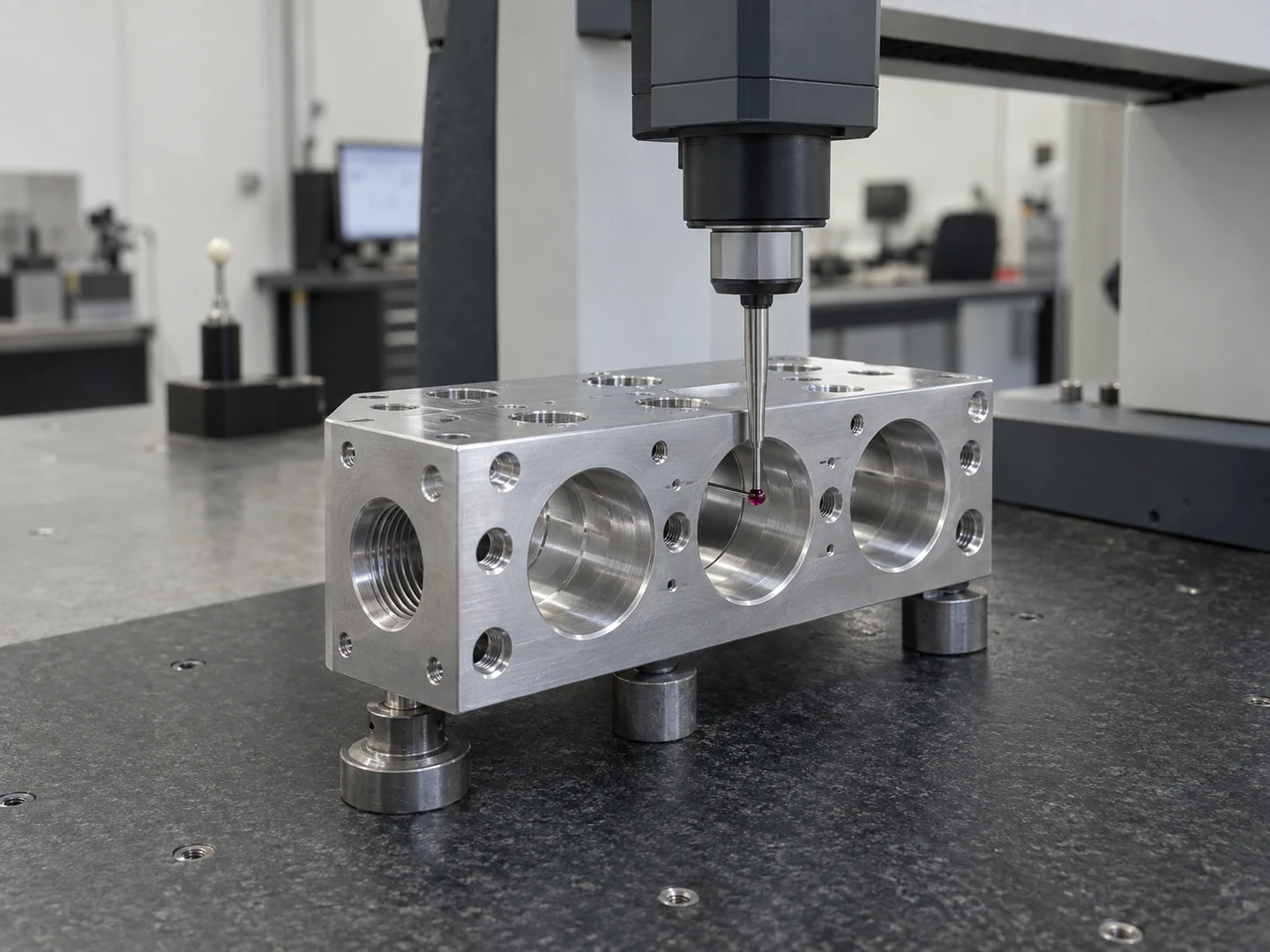

List the records required with the parts, such as a dimensional report for selected characteristics, first-article documentation or material certificates. Specify the inspection frequency or sample quantity instead of using an undefined request for “full inspection.”
Include cleanliness, corrosion protection, individual wrapping, protective caps, labeling and export packaging requirements. Threads, sealing faces and cosmetic surfaces may need dedicated protection during transport.
- Characteristics to measure and report
- First-article or sample inspection expectations
- Material and finishing certificates
- Cleaning and contamination limits
- Packaging, labeling and traceability needs
07
Use a structured RFQ checklist to compare suppliers
Put the commercial and technical requirements into one controlled request. Mark unresolved items as pending and ask suppliers to list their assumptions, exclusions and proposed alternatives. This makes quotations easier to compare and reduces the risk of selecting a low price that omits inspection, finishing or delivery work.
- Contact, company, part number and revision
- 3D model and controlled 2D drawing
- Material, finish and critical features
- Quantity breaks and delivery destination
- Inspection, documents and packaging
- Supplier assumptions, exclusions and quotation validity
08
What happens after you submit the CNC machining RFQ?
A manufacturing review should connect geometry, workholding, process route, finishing and inspection before price and lead time are finalized. Focused questions are a useful sign when they identify ambiguous datums, inaccessible features, conflicting files or acceptance criteria that need confirmation.
MIM Machining reviews drawing-led CNC projects for prototype and production planning. Upload the current package through the inquiry form and identify the features that control fit, sealing, alignment or cosmetic acceptance. The resulting quotation can then be based on the stated scope rather than hidden assumptions.
Frequently asked questions
Questions engineers and buyers ask before quotation.
Do I need both a 3D model and a 2D drawing for a CNC machining RFQ?+
For most precision parts, both are useful. The 3D model defines nominal geometry, while the controlled 2D drawing communicates tolerances, datums, threads, finishes, inspection notes and revision status.
Which CAD file format is best for CNC machining quotation?+
STEP or STP is a widely usable neutral solid format. Native CAD can also help when design features matter. Include a PDF drawing and confirm the current revision regardless of the 3D format.
Should I disclose annual volume during the RFQ stage?+
Share a realistic range when possible. Prototype, pilot and production quantities can require different fixtures and process controls, so volume context helps suppliers recommend and price an appropriate route.
Why do CNC machining quotations from different suppliers vary so much?+
Suppliers may assume different materials, setups, inspection scopes, finishes, packaging or delivery terms. A controlled RFQ that asks each supplier to state assumptions and exclusions makes the commercial comparison more meaningful.
Can I request a quote before every tolerance is finalized?+
Yes, but clearly mark pending requirements and identify the features most likely to affect process selection. Treat the result as a budgetary quotation until the controlled drawing and acceptance criteria are released.
