A rejected CNC machined part rarely has one obvious cause. Chatter, burrs, dimensional drift, tool marks and distortion can begin with geometry, stock condition, workholding, tool wear, heat, chip evacuation or an unclear acceptance method. This guide helps engineering and quality teams connect the visible symptom to evidence, corrective action and a better manufacturing plan.
Key takeaways
Classify the nonconformance by feature, location, direction and inspection condition before changing the machining process.
Separate design, material, workholding, tooling, machine, finishing and measurement causes so the corrective action addresses evidence rather than appearance alone.
Put critical features, acceptance criteria, report scope and post-finishing requirements into the drawing and RFQ before production begins.
01
Quick diagnostic matrix for common CNC machining defects
CNC machining defects should be treated as nonconformances against a defined requirement, not as a generic list of visual problems. The same symptom can have different causes. A wavy surface may come from tool vibration, flexible workholding or a thin wall. A bore that measures differently across its depth may reflect tool deflection, thermal change, datum error or the measurement method.
Begin with the drawing revision, measured result, feature location and inspection setup. Then compare the process record, tool condition and material information. The matrix below is a starting point for investigation; it is not a substitute for part-specific root-cause analysis.
| Observed condition | Possible contributors | Evidence to check | Potential prevention route |
|---|---|---|---|
| Chatter or repeating waves | Low system rigidity, long tool overhang, unstable engagement, flexible wall or fixture | Pattern direction, tool and holder, spindle condition, workholding contact, feature stiffness | Improve rigidity, support and engagement; review wall geometry and machining sequence |
| Burrs or rolled edges | Tool wear, ductile material behavior, exit direction, unsupported edge or unsuitable parameters | Burr location, tool life, edge condition, cut direction and deburring requirement | Plan tool-life control, edge support and a drawing-based deburring method |
| Size drift through a batch | Tool wear, thermal change, compensation, stock variation or measurement inconsistency | Time sequence, offset history, temperature, tool changes, gauge study and stock lot | Use defined checkpoints, tool-life rules and a suitable measurement method |
| Taper, out-of-round or bore error | Deflection, runout, workholding distortion, access, chip packing or datum transfer | Section measurements, spindle and tool runout, clamp state, chip evidence and setup sequence | Shorten the load path, improve support, control chips and align machining with functional datums |
| Warping after unclamping | Residual stress, unbalanced material removal, clamp-induced strain, heat or flexible geometry | Free-state measurements, stock condition, removal sequence, clamp force and elapsed time | Review stock, roughing balance, stress release, support and inspection state |
| Scratches, dents or finish damage | Chip recutting, handling, cleaning, rack contact, transport or downstream finishing | Defect direction, process stage, trays, packaging and pre/post-finish inspection | Protect cosmetic and functional faces throughout machining, finishing and shipment |
02
Define the defect against the drawing and functional requirement
The first question is whether the part fails a controlled requirement. A visible tool path may be acceptable on a hidden clearance face but unacceptable on a sealing surface. A dimension outside a general tolerance may have little functional effect, while a smaller positional error between two mating features may prevent assembly. Record the part number, revision, characteristic, nominal value, limits, measured value and measuring method before deciding what failed.
For appearance requirements, identify cosmetic zones, viewing conditions and comparison standards. Words such as ‘perfect finish’ or ‘no marks’ are difficult to inspect consistently. For dimensional requirements, confirm the datum scheme, free or restrained condition, temperature and whether the requirement applies before or after anodizing, plating, heat treatment or another secondary process.
- Current drawing and model revision
- Feature identification and exact acceptance requirement
- Measured value, method, instrument and inspection condition
- Part serial, cavity, machine, fixture, tool, lot or production time where available
- Whether the condition affects fit, sealing, motion, fatigue, appearance or documentation
03
Surface defects: chatter, tool marks, burrs and built-up edge
Chatter is a self-excited vibration in the machining system. Its visible wavelength and direction can help distinguish it from ordinary feed marks. The complete system matters: machine, spindle, holder, cutter, tool overhang, workpiece stiffness, fixture contact and cutting engagement. Changing spindle speed may move the process away from an unstable condition, but a flexible wall or poor support still needs to be addressed.
Tool marks are not automatically defects. Their acceptability depends on the specified roughness, lay, sealing or sliding function and cosmetic standard. When the pattern changes unexpectedly, inspect the cutting edge, runout, chip recutting, toolpath transition and finish allowance. Built-up edge can alter the effective cutting geometry on ductile materials and produce tearing, dimensional variation or poor finish.
Burrs form differently at entry, exit, hole intersections and thin unsupported edges. A reliable prevention plan considers material behavior, tool condition, exit support, feature orientation and the required edge break. Deburring should not erase a controlled edge, damage a thread or round a sealing interface. State whether the drawing requires a general edge break, a specific chamfer or only removal of loose burrs.
04
Dimensional defects: drift, taper, position and datum transfer
A single out-of-tolerance result and a gradual batch trend point toward different investigations. Plot the results in production order when possible. Progressive size change may correlate with tool wear, temperature or offset adjustment; a sudden step may correlate with a tool change, fixture reload or program revision. Random-looking variation can come from chips on locating surfaces, inconsistent clamping, unstable stock or the measurement system itself.
Deep bores, pockets and long-reach features increase deflection risk. The programmed toolpath is not the same as the cut surface when the tool or part moves under load. Positional errors can also appear when related features are produced in different setups and the datum transfer is unclear. Five-axis machining can reduce repositioning for appropriate geometry, but it does not replace a stable datum strategy, workholding plan or CNC machining quality inspection.
- Compare first, middle and last pieces rather than one isolated result
- Review feature depth, tool reach and cutting direction
- Check locating surfaces for chips, damage and inconsistent contact
- Trace which related features were machined in the same setup
- Confirm measurement alignment to the drawing datum reference frame
05
Distortion and warping require a material-and-process investigation
Warping may appear during roughing, after unclamping, after heat treatment or finishing, or after the part rests. Residual stress in plate, bar, forgings or castings can redistribute as material is removed. Thin walls and large stock-removal ratios reduce stiffness, while excessive clamp force can hold a flexible part in a temporarily distorted state. Heat from cutting and downstream processes can add another mechanism.
Record when the part changed and whether it was measured restrained or free. Review material grade, temper, product form, stock condition and certificate rather than assuming all material with the same alloy name behaves identically. A process may use balanced roughing, intermediate relaxation, revised support, lower-distortion stock or finishing after the geometry stabilizes. The correct route depends on geometry and requirements; stress relief is not automatically appropriate for every alloy or finished-property requirement.
06
Use a structured root-cause and corrective-action process
Do not change several variables at once unless containment requires it. First protect the customer and isolate affected material. Confirm the inspection result, then reproduce or correlate the condition using the process record. Separate occurrence controls, which prevent the defect, from detection controls, which find it before shipment.
A useful corrective action explains why the condition occurred, why existing controls did not prevent or detect it and how the revised control will be verified. ‘Operator error’ is incomplete when the work instruction, fixture, tool-life rule, program control or inspection checkpoint allowed the error to reach the part. Likewise, adding final inspection alone may improve detection without stabilizing the process.
- Contain affected parts, stock, work-in-process and shipped lots as appropriate
- Verify the result with the agreed method and review measurement uncertainty
- Compare conforming and nonconforming parts by machine, setup, tool, material lot and time
- Test the suspected cause with a controlled change or supporting evidence
- Update the process, drawing clarification, fixture, tool-life control or inspection plan
- Verify effectiveness on an appropriate production sample and retain the evidence
07

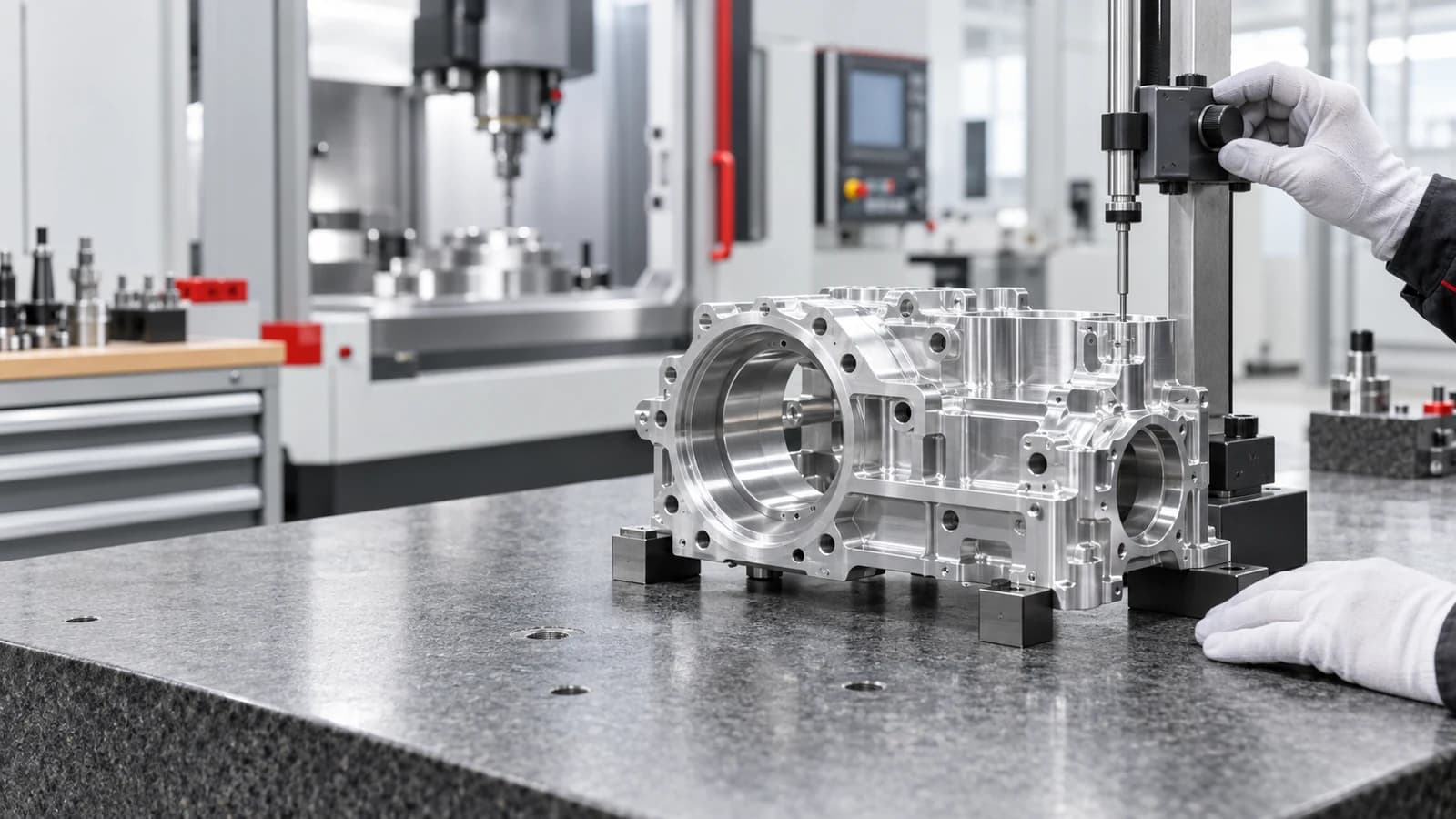

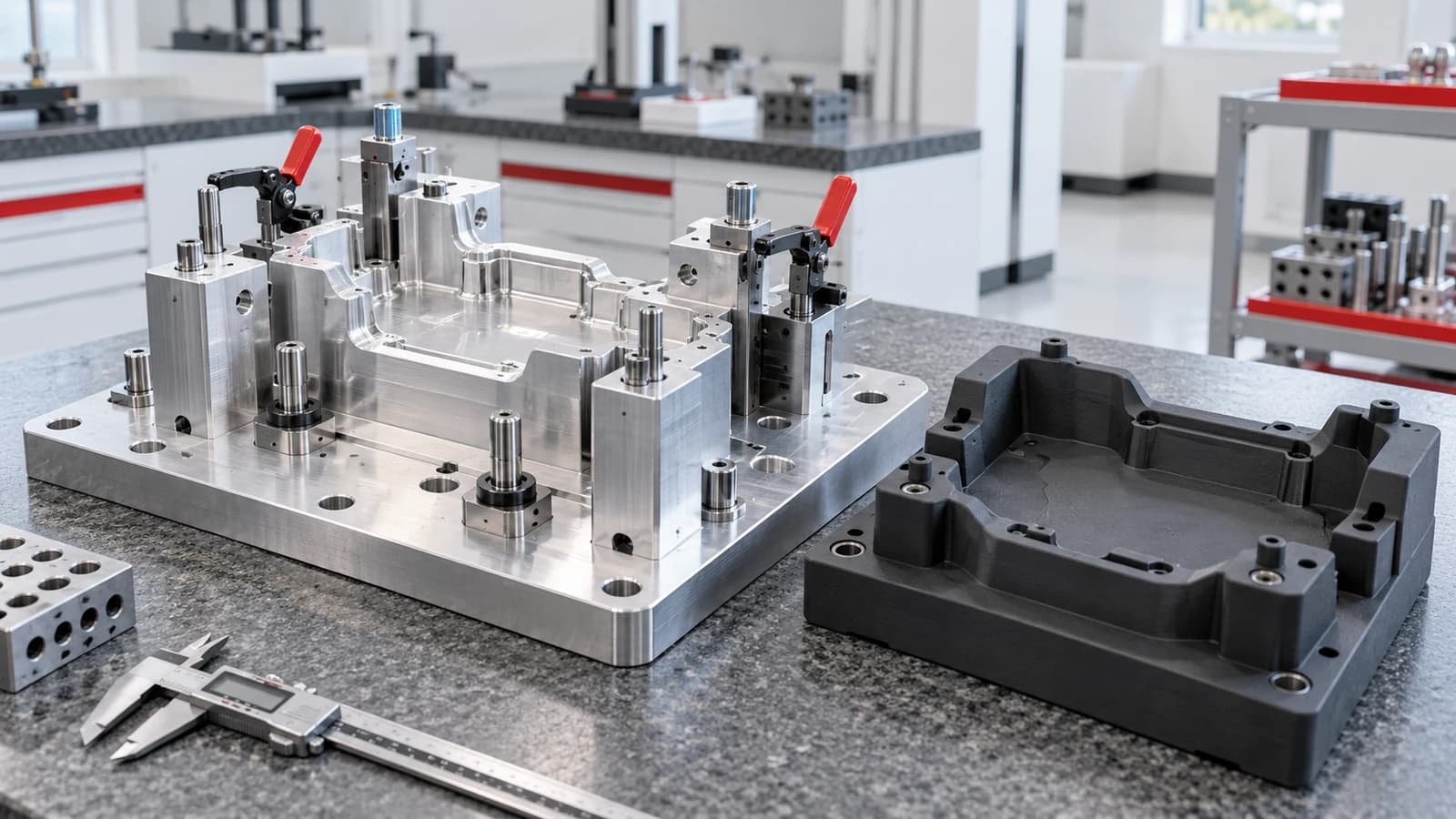

Build CNC machining quality inspection around feature risk
Inspection should match the characteristic. Micrometers, bore gauges, height gauges, optical systems, surface-roughness equipment, CMMs and dedicated gauges each solve different problems. A CMM can document many geometric relationships, but it may not be the best tool for every diameter, thread, edge condition or surface texture.
Define which characteristics need first-piece approval, in-process checks, final reporting or functional gauges. Include sample size and report format in the RFQ. If the part is flexible, agree on support and restraint during measurement. If a coating changes the final dimension, decide whether the feature is checked before finishing, after finishing or at both stages. These decisions make CNC surface finish inspection and dimensional records comparable across releases.
08
Prevent defects during CNC machining DFM analysis
DFM prevention begins before toolpaths exist. Identify thin walls, deep cavities, long tool reach, inaccessible intersections, sharp internal corners, interrupted cuts and features that leave fragile edges. Apply tight tolerances and fine surface requirements only where function needs them. A feature that is easy to model may still be difficult to support, cut, deburr or inspect.
The design review should also connect secondary operations to the final requirement. Heat treatment, anodizing, plating, passivation, blasting, polishing and cleaning can change dimensions or appearance and may reveal rather than hide machining defects. Define protected surfaces, masking, rack-contact zones and post-process inspection before release.
- Use accessible internal radii and practical depth-to-width relationships
- Keep wall transitions gradual where function allows
- Provide stable datum and clamping surfaces
- Identify critical edges, intersections and burr-sensitive passages
- Define dimensions and appearance requirements after downstream processing
- Confirm how critical characteristics can be measured
09
Add defect-prevention requirements to the CNC machining RFQ
A quote cannot include an unknown quality scope. Send the controlled 2D drawing and STEP model with material, quantity, finish and functional context. Mark the characteristics that control assembly or performance and state the required inspection evidence. If a previous build experienced a defect, share the failure mode and the corrective requirement without forcing an unverified process solution.
MIM Machining reviews custom CNC machining services around the supplied drawing package. Process capability, inspection method and prevention controls are confirmed for the actual geometry, material, batch size and acceptance criteria rather than assumed from a universal machining claim.
- Part number, revision, CAD model and controlled drawing
- Exact material grade, condition, stock form and certificate requirements
- Critical dimensions, datums, GD&T, threads and surface texture
- Cosmetic zones, edge and burr requirements, cleaning and packaging
- Prototype, pilot and production quantities
- First-article, dimensional report, sampling and traceability expectations
- Known historical defects or assembly risks that require review
10
Technical references
Primary technical resources support the investigation framework. The released drawing, material data, selected equipment and validated process remain controlling for each project.
11
Send the drawing and nonconformance evidence for review

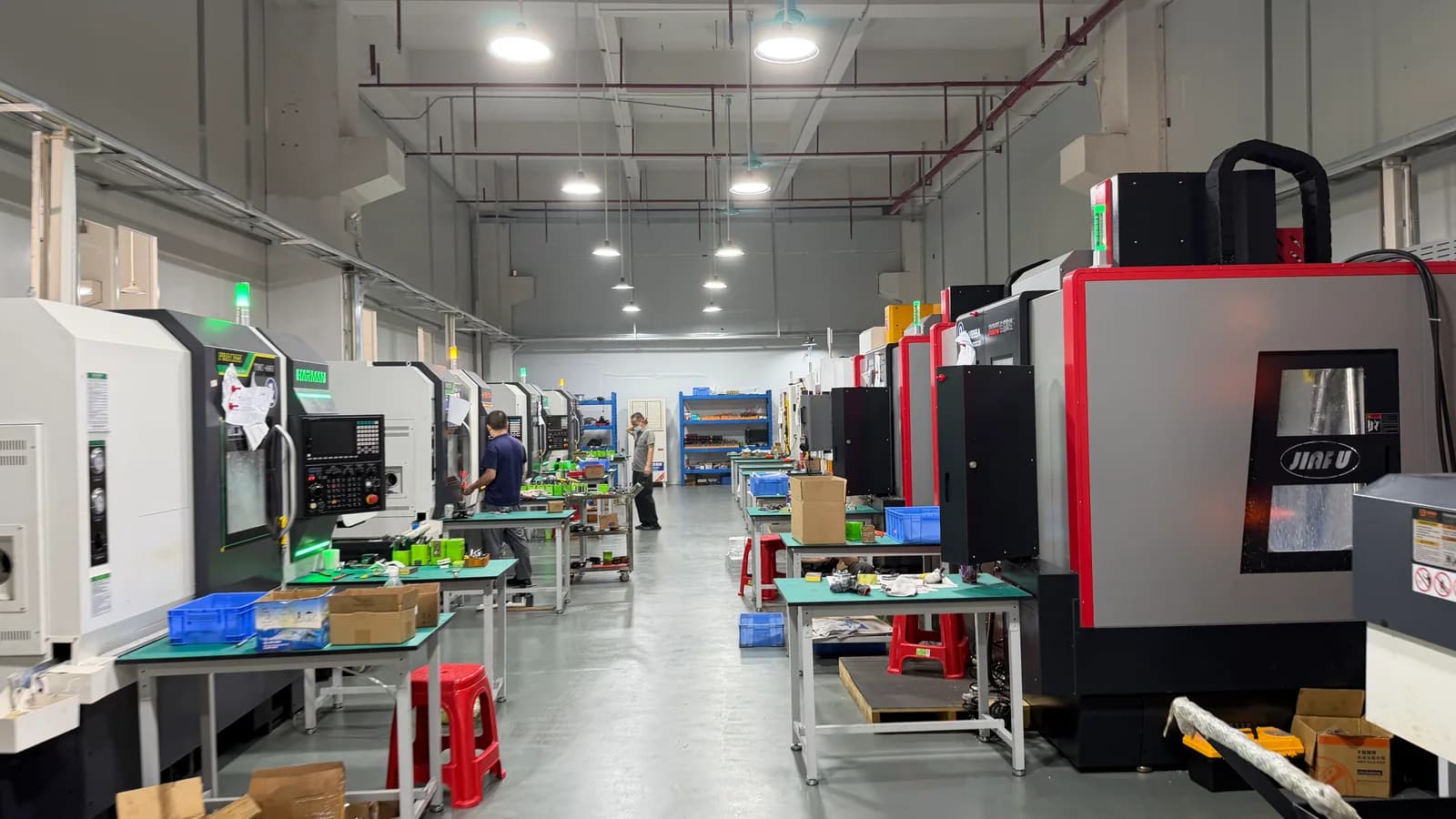

MIMCNC supports drawing-based precision CNC machining from prototype through repeat production. Send the latest drawing and STEP file with material, quantities, critical features, finishing and inspection requirements. If you are replacing a previous supplier or correcting an existing issue, include photographs, measurement results and the affected feature so the review begins with evidence.
Use the inquiry page or contact Julie Cai at juliecai@mimcnc.com and +86 136 7015 0900. Manufacturing and quality requirements are confirmed for each project before quotation.
Frequently asked questions
Questions engineers and buyers ask before quotation.
What are the most common CNC machining defects?+
Common conditions include chatter, unexpected tool marks, burrs, built-up edge, dimensional drift, taper, positional error, warping and handling damage. Whether a condition is a defect depends on the controlled drawing, functional requirement and agreed appearance standard.
Why does a CNC machined part pass in the fixture but fail after unclamping?+
A flexible part can be held in a strained condition by the fixture and spring back after release. Residual stress, unbalanced material removal and heat can also change the free-state geometry. Define the inspection state and investigate material, process and clamping together.
Can surface finishing hide CNC machining defects?+
Some finishes can make minor texture more uniform, but they do not correct dimensional errors, deep chatter, cracks or distortion. Blasting, polishing, coating and plating can also change appearance, edges or dimensions, so pre- and post-finish requirements should be defined.
How should burr requirements be specified?+
Identify critical intersections and protected edges, then state whether loose burr removal, a maximum edge condition or a defined chamfer is required. Avoid vague instructions that could damage sealing faces, threads or sharp functional features.
Does a CMM detect every machining defect?+
No. A CMM is useful for many dimensional and geometric relationships, but surface roughness, thread form, very small bores, burrs, cracks and cosmetic conditions may need other instruments, gauges or visual standards.
What evidence should I send when asking a new supplier to prevent a repeated defect?+
Send the current CAD and drawing plus photographs, measured results, feature location, inspection method, affected quantity and any known process history. Describe the functional impact and acceptance requirement rather than prescribing a process cause that has not been verified.
